MS27142
 |
| MS DASH NO. | REFERENCE DRAWING NO. (ASSEMBLY) | SHELL NUMBER | WASHER NUMBER | TERMINAL NUMBER | CABLE DIAMETER | AWG SIZE | CABLE MIL-C-13486 PART NUMBER |
| -1 | 8338571 | 8338572 | 8338573 | MS-27148-1 | .235 ± .010 | 12 | M-13486/1-7 |
| -2 | 8338565 | 8338566 | 8338567 | MS-27148-2 | .160 ± .010 | 14 | M-13486/1-5 |
| -3 | NONE | 8724495 | 8724497 | MS-27148-3 | .135 ± .015 | 16 | M-13486/1-3 |
|
MS27143
 |
| MS DASH NO. | REFERENCE DRAWING NO. (ASSEMBLY) | SHELL NUMBER | WASHER NUMBER | TERMINAL NUMBER | CABLE DIAMETER | AWG SIZE | CABLE MIL-C-13486 PART NUMBER |
| -1 | 8338568 | 8338569 | 8338570 | 8338564 | .235 | 12 | M-13486/1-7 |
|
MS27144
 |
| MS DASH NO. | REFERENCE DRAWING NO. (ASSEMBLY) | SHELL NUMBER | TERMINAL NUMBER | SLEEVE NUMBER | CABLE DIAMETER | AWG SIZE | CABLE MIL-C-13486 PART NUMBER |
| -1 | 8338560 | 8338561 | 8338564
OR
7982297 | 8338562 | .160 ± .010 | 14 | M-13486/1-5 |
| -2 | NONE | 8724494 | .130 ± .015 | 16 | M-13486/1-3 |
| -3 | 7982398 | 7982401 | .160 ± .010 | 14 | M-13486/1-5 |
|
MS27145
 |
| MS DASH NO. | REFERENCE DRAWING NO. (ASSEMBLY) | SHELL NUMBER | 2 EACH TERMINAL NUMBER | 2 EACH SLEEVE NUMBER | CABLE DIAMETER | AWG SIZE | CABLE MIL-C-13486 PART NUMBER |
| -1 | 8689045 | 7064586 | 8338564 | 8338562 | .160 | 14 | M-13486/1-5 |
|
SHELL 10875100 SLEEVE 8338562 TERMINALS 8338564
SLEEVE 10875101
| ORDNANCE NO. | MILITARY STD. NO. | DESCRIPTION | ORDNANCE NO | MILITARY STD. NO. | DESCRIPTION |
| 572929 | MS27148-2 | 14 GAUGE TERMINAL | 8338567 | | 14 GAUGE C WASHER |
| 572930 | MS27148-1 | 12 GAUGE TERMINAL | 8338568 | MS27143 | PLUG ASSY 12 GAUGE |
| 572931 | MS27148-3 | 16 GAUGE TERMINAL | 8338569 | | MALE SHELL 12 GAUGE |
| 7064586 | | MALE SHELL DOUBLE | 8338570 | | WASHER 12 GAUGE |
| 7982398 | MS27144-3 | 14 GAUGE RIBBED ASSY | 8338571 | MS27142 | FEMALE ASSY 12 GAUGE |
| 7982401 | | MALE SHELL RIBBED | 8338572 | | FEMALE SHELL 12 GAUGE |
| 7982907 | | PLUG TO 8338566 | 8338573 | | C WASHER 12 GAUGE |
| 7982997 | | SOLDER TYPE TERMINAL | 8689045 | MS27145 | MALE PLUG ASSY DOUBLE |
| 8338560 | MS27144-1 | 14 GAUGE PLUG ASSY | 8724494 | | MALE SHELL 16 GAUGE |
| 8338561 | | MALE SHELL 14 GAUGE | 8724495 | | FEMALE SHELL 16 GAUGE |
| 8338562 | | NYLON SLEEVE | 8724497 | | C WASHER 16 GAUGE |

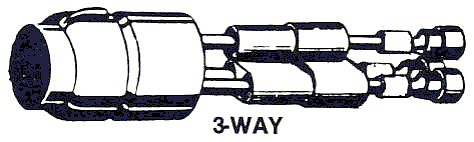

| 8338564 | | CRIMP TYPE TERMINAL | 10875099 | | PLUG ASSY TRIPLE |
| 8338565 | MS27142-2 | FEMALE ASSY 14 GAUGE | 10875100 | | MALE TRIPLE SHELL |
| 8338566 | | FEMALE SHELL 14 GAUGE | 10875101 | | NYLON SLEEVE DOUBLE |
|
